In mineral exploration drilling, mining operations, and geological core sampling, efficiency and reliability are essential for obtaining accurate results. Among the various diamond drilling tools available, impregnated core bits are widely recognized for their durability and performance. As one of the reliable options, ROCKCODE impregnated core bits could be a strategic choice for drilling contractors seeking consistent performance and value.

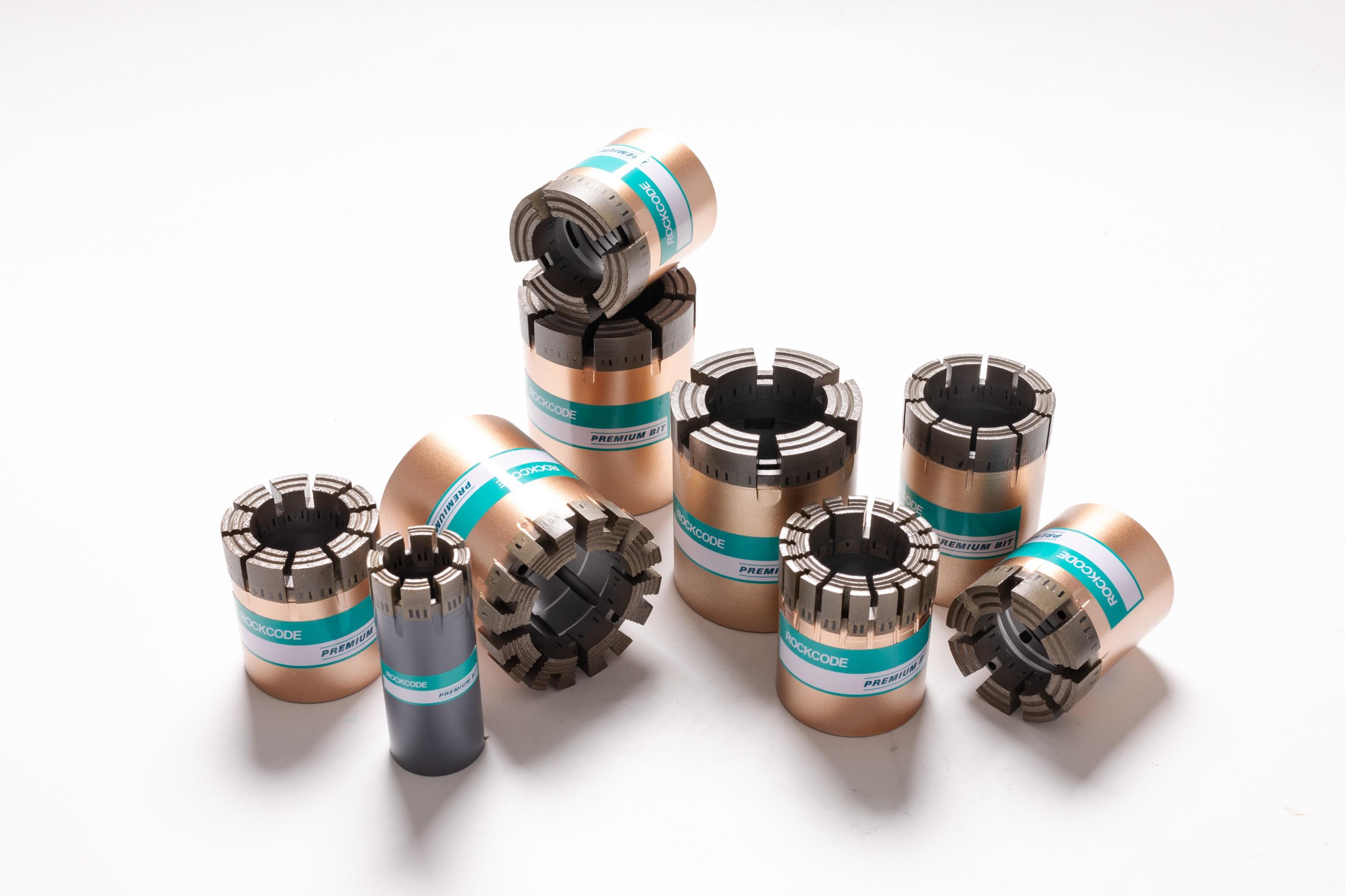

impregnated core bit



What is a Diamond Impregnated Core Bit

A diamond impregnated core bit is a specialized drilling tool widely used in mineral exploration and geological core sampling. Unlike surface-set diamond bits, which depend on a single layer of exposed diamonds, impregnated bits are manufactured by embedding multiple layers of high-quality synthetic diamonds within a durable sintered matrix around the drill crown. This fundamental design difference provides superior performance in hard and abrasive formations where conventional bits quickly lose effectiveness.

During drilling, the matrix gradually wears down as the diamonds become dull or rounded. This controlled erosion continually exposes fresh, sharp diamonds, ensuring that the bit maintains efficient cutting performance throughout its service life. Recent technological advances have achieved chemical bonding between diamond and matrix that is stronger than the diamond itself, as demonstrated by industry leaders like Boart Longyear with their patent-pending technology1. Thanks to the self-renewing mechanism, impregnated core bits are especially effective in hard and abrasive rock formations where conventional bits often lose effectiveness quickly.



Key Features of Diamond Impregnated Core Bits

· Self-Sharpening Mechanism

The unique matrix structure of diamond impregnated core bits allows dull or rounded diamonds to be replaced by new sharp ones as the matrix wears down. This ensures stable cutting speed and consistent drilling efficiency, even during extended operations.

· High Durability

Engineered for demanding environments, impregnated core bits are highly resistant to wear and maintain their performance when drilling through some of the hardest and most abrasive geological formations. Recent study shows that using high-entropy alloy (HEA) binder phases in impregnated diamond bits can dramatically reduce wear rates and extend service life compared with conventional Cu-Co matrices2.

· Reliable Performance

With a continuous renewal of sharp diamonds, these core bits deliver steady penetration rates and reduce downtime, which is essential for maintaining productivity in mineral exploration and geological core sampling.

· Wide Range of Applications

Suitable for drilling in different rock type: from medium-hard to ultra-hard formations—impregnated core bits are widely used in geological surveys, mining projects, and core sampling where precision and reliability are required.

· Cost-Effective Solution

By combining long service life with reduced replacement needs, impregnated core bits offer an economical choice for large-scale drilling projects, which lower overall drilling costs while ensuring dependable results.



How Diamond Impregnated Core Bits Work

The effectiveness of diamond impregnated core bits comes from their unique working principle. The cutting surface is made up of numerous synthetic diamond particles distributed throughout a sintered matrix. During drilling, the process unfolds in a continuous cycle:

  • Initial Cutting – Sharp diamonds engage the rock surface, grinding it into fine particles.

  • Matrix Wear – As these diamonds become dull, the surrounding matrix gradually erodes at a controlled rate.

  • Exposure of New Diamonds – Fresh, sharp diamonds are revealed, maintaining cutting efficiency.

  • Debris Removal — Drilling fluid flowing through carefully designed waterways removes rock cuttings and cools the bit face.

This self-renewing mechanism ensures that impregnated core bits sustain optimal penetration rates and extend their service life, even in hard and abrasive rock formations where conventional drilling tools often lose effectiveness.



Applications of Diamond Impregnated Core Bits

Because of their durability and reliable cutting action, impregnated core bits are widely used in industries where precision and consistency are essential:

  • Mineral Exploration – Enables efficient recovery of core samples for geological evaluation.

  • Mining Operations – Performs reliably in hard rock drilling, supporting resource assessment and planning.

  • Geological Surveys – Provides accurate subsurface data critical for research and exploration.

  • Oil and Gas Exploration – Delivers dependable core sampling in deep and abrasive formations.



Advantages Over Other Drill Bits

Compared with surface-set diamond bits or conventional drill bits, diamond impregnated core bits provide several clear technical advantages:

  • Extended Service Life – The self-renewing matrix design allows impregnated bits to last longer in hard rock drilling conditions.

  • High Abrasion Resistance – Capable of maintaining performance when cutting through abrasive geological formations.

  • Reduced Risk of Premature Failure – Continuous exposure of new sharp diamonds lowers the chance of early bit wear or damage.

  • Consistent Core Recovery – Reliable core quality and continuity, which is essential for geological analysis and mineral exploration.







Choosing the Right Impregnated Core Bit

Selecting the most suitable impregnated core bit for a project requires considering several factors:

  • Rock Hardness: Different matrix hardness grades and wear-resistance levels are available to match specific rock types. ROCKCODE offers a comprehensive selection of 21 different matrix formulations, each optimized for specific geological conditions. The selection process involves analyzing rock samples, reviewing drilling logs from adjacent areas, and considering local geological knowledge.

  • Equipment Compatibility: The bit should fit the specifications of the drilling rig and core barrel system. ROCKCODE's technical team provides detailed compatibility assessments to ensure optimal matching between bits and drilling equipment.

  • Operational Parameters: Variables such as rotation speed, weight on bit, and drilling fluid type significantly affect performance.

  • Environmental and Safety Requirements: Modern exploration drilling increasingly emphasizes environmental protection and operational safety. Bits designed for reduced water consumption, minimal ground disturbance, and enhanced core recovery support sustainable exploration practices while meeting regulatory requirements.

By evaluating these factors carefully, drilling teams can ensure efficient performance and maximize cost-effectiveness in core drilling and mineral exploration projects.



Why Choose WUXI ROCKCODE

Choosing the right impregnated diamond core bit is not only about matching the tool to the formation, it is also about partnering with a manufacturer that understands geological challenges and delivers consistent quality. ROCKCODE impregnated core bits are designed with this in mind, offering contractors and drilling companies a reliable solution backed by years of industry expertise.

  • Premium Raw Materials: ROCKCODE sources tungsten powders from global leading companies such as Kennametal Inc. and Sandvik, and synthetic diamonds from Element Six and ILJIN. This ensures its consistent quality and reliable performance at the very beginning stage.

  • Rich Manufacturing Experience: With over 10 years of production and extensive geological exploration data, ROCKCODE continuously improves its formulations and processes. Therefore, ROCKCODE’s impregnated core bits demonstrate excellent durability and cutting efficiency, even in challenging formations such as hard rock and highly abrasive strata.

  • Cost-Effective Solutions: Enhanced production efficiency allows ROCKCODE to provide high-quality impregnated core bits with greater cost-effectiveness.

  • Custom Design Capability: Our technical team can independently design and customize both core and non-core bits to meet specific geological formations and client requirements, delivering tailored drilling solutions.

  • Technical Consultation: ROCKCODE is willing to provide professional advice on bit selection, application, and drilling optimization to help you improve efficiency and reduce operational costs.







→ For more information about ROCKCODE’s impregnated core bits, please visit: www.rockcodebit.com/impregnated-diamond-core-bit.html
→ Email us at: info@rockcodebit.com

→ Information in this article is for general reference only. For specific drilling projects, please consult qualified professionals. Thank you.



1Boart Longyear. (2018). "Complete line of Longyear™ Diamond Drilling Bits now available, cutting faster and lasting longer." Company announcement regarding patent-pending chemical bonding technology. https://www.boartlongyear.com/news/complete-line-of-longyear-diamond-drilling-bits-now-available-cutting-faster-and-lasting-longer/

2Y. Gao, H. Xiao, B. Liu, Y. Liu, Enhanced drilling performance of impregnated diamond bits by introducing a novel HEA binder phase, Int. J. Refract. Met. Hard Mater. 118 (2024) 106449.
